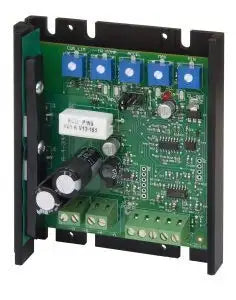

65E10C Low Voltage PWM DC Motor Control

Rated for 10 or 20 amps continuous current, the 65E is a high performance PWM control for 12 thru 48 volt battery powered equipment. Features include adjustable maximum speed, minimum speed, current limit, I.R. compensation, and acceleration, plus a quiet operating frequency of 18kHz. Especially useful in portable equipment and solar powered applications.

• Smooth, quiet 18kHz switching
• NEMA 4X enclosed models
• Saves battery charge for longer operation / life
• High efficiency MOSFET's reduce voltage drop
• Speed regulation is ±1% of base speed
• Adjustable MAX and MIN speed; IR COMP; CUR LIM; ACCEL
• Accepts 0-10Vdc speed signals
• Inhibit input for low power start/stop switching
• Current limit shutdown and output
• Supply voltage and Current Limit status LED's

This updated design now includes:

• 12-48VDC operating range in the same control
• Supply Voltage and Current Limit status LED’s
• Current Limit shutdown and output
• Higher efficiency – Up to 60+% less voltage drop
• NEMA 4X enclosed model for both 10A and 20A applications
• Under Voltage Lockout (option) protects from battery deep cycle discharge
