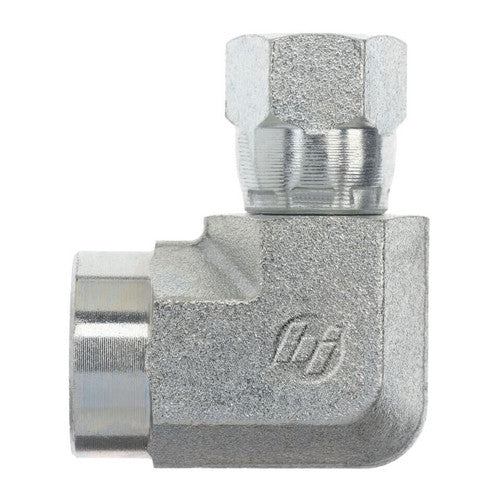

Steel, SAE J514 37° Flare Swivel 90° Female Elbow, 3/8" Female NPTF x 1/2" Female JIC Swivel
SKU 6503-06-08-FG
Original price
$16.00
-
Original price
$16.00
Original price
$16.00
$16.00
-
$16.00
Current price
$16.00
-
Product Attributes:
- #8 JIC Thread
- 3/8" NPTF Thread
- 90 Elbow
- Female Rigid
- Female Swivel
- Hydraulic Adapters
- Steel
The 6503-06-08-FG from Brennan Industries is a steel 90° elbow — a 90° elbow fitting that changes hydraulic line direction at a right angle. Built for use in hydraulic, fluid power, and pneumatic systems.
| Material | Steel |
| Plating | Trivalent Chrome (CR3) |
| Shape | 90° Elbow |
| Side 1 Connection | Female NPTF |
| Side 1 Thread Size | 3/8-18 NPT |
| Side 1 Standard | SAE J476 / ANSI B1.20.3 |
| Side 2 Connection | Female JIC 37° Flare Swivel |
| Side 2 Thread Size | 3/4-16 UNF |
| Side 2 Standard | SAE J514 (Class 2A Thread) |
