Product Image
Product photo may not represent actual item. Please see product details for more information.
RAPTOR 100HCBM 105M P7
SKU 019921
Original price
$3,758.00
-
Original price
$3,758.00
Original price
$3,758.00
$3,758.00
-
$3,758.00
Current price
$3,758.00
-
Product Attributes:
- 105mm Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 100
- Steel

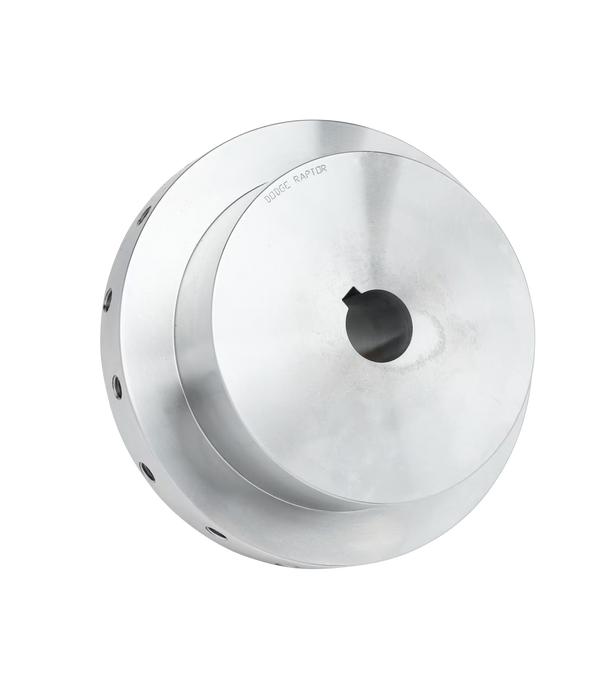

This Dodge Raptor size 100 finished bore shaft hub is bored to 105 mm to ISO P7 tolerance. Two set screws at a 65° angle optimize radial and torsional holding power, delivering up to 75% more holding power than single set screw designs, and the reversible steel hub fits both close-coupled and spacer Raptor couplings. This hub is tapped for metric hardware; use with Raptor metric (M) element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 019921 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Finished Bore |
| Coupling Size | E100 |
| Bore | 105 mm |
| Bore Fit | ISO P7 bore tolerance |
| Hardware Type | Metric (hub tapped for metric hardware) |
| Max Rated Torque | 85,085 in-lb |
| Max Speed | 1,900 RPM |
| Hub Length Thru Bore (B) | 5.50 in. |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
