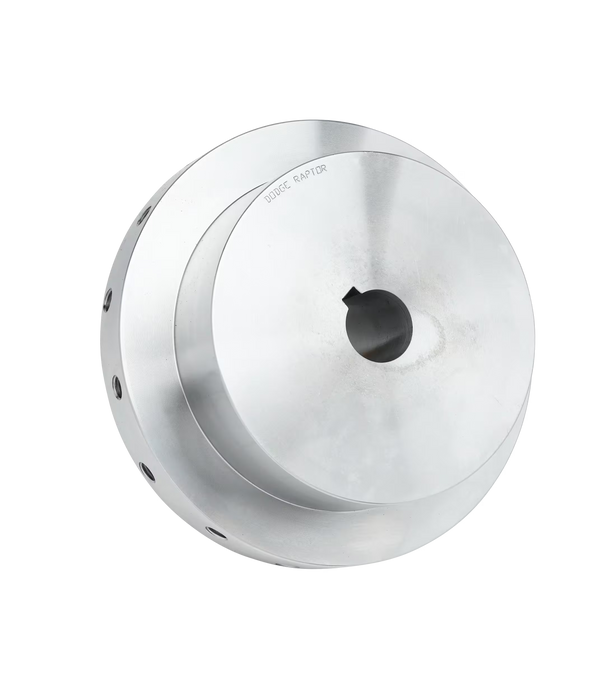

Product Image
Product photo may not represent actual item. Please see product details for more information.
RAPTOR 120HCBM 3-7/16" INT FIT
-
Product Attributes:
- 3 7/16" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 120
- Steel
This Dodge Raptor size 120 finished bore shaft hub is bored to 3-7/16 in. with an interference fit per AGMA 9002. Two set screws at a 65° angle optimize radial and torsional holding power, delivering up to 75% more holding power than single set screw designs, and the reversible steel hub fits both close-coupled and spacer Raptor couplings. This hub is tapped for metric hardware; use with Raptor metric (M) element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 016600 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Finished Bore |
| Coupling Size | E120 |
| Bore | 3-7/16 in. |
| Bore Fit | Interference fit (AGMA 9002) |
| Hardware Type | Metric (hub tapped for metric hardware) |
| Max Rated Torque | 170,170 in-lb |
| Max Speed | 1,800 RPM |
| Hub Length Thru Bore (B) | 6.00 in. |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
