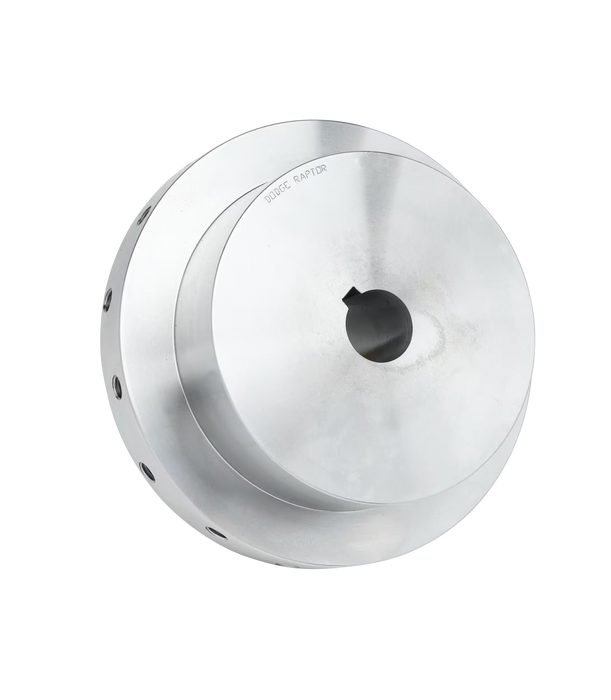

RAPTOR 10HCB 20MM H7
SKU 016293
Original price
$361.00
-
Original price
$361.00
Original price
$361.00
$361.00
-
$361.00
Current price
$361.00
-
Product Attributes:
- 20mm Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 10
- Steel
This Dodge Raptor size 10 finished bore shaft hub is bored to 20 mm to ISO H7 tolerance. Two set screws at a 65° angle optimize radial and torsional holding power, delivering up to 75% more holding power than single set screw designs, and the reversible steel hub fits both close-coupled and spacer Raptor couplings. Tapped for Imperial hardware; use with standard Raptor E10 element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 016293 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Finished Bore |
| Coupling Size | E10 |
| Bore | 20 mm |
| Bore Fit | ISO H7 bore tolerance |
| Hardware Type | Imperial (inch) |
| Max Rated Torque | 1,456 in-lb |
| Max Speed | 6,600 RPM |
| Hub Length Thru Bore (B) | 1.88 in. |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
