RAPTOR 10HTL-1310
SKU 015804
Original price
$146.00
-
Original price
$146.00
Original price
$146.00
$146.00
-
$146.00
Current price
$146.00
-
Product Attributes:
- Accepts 1310 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 10
- Steel
- Taper Bushed Bore

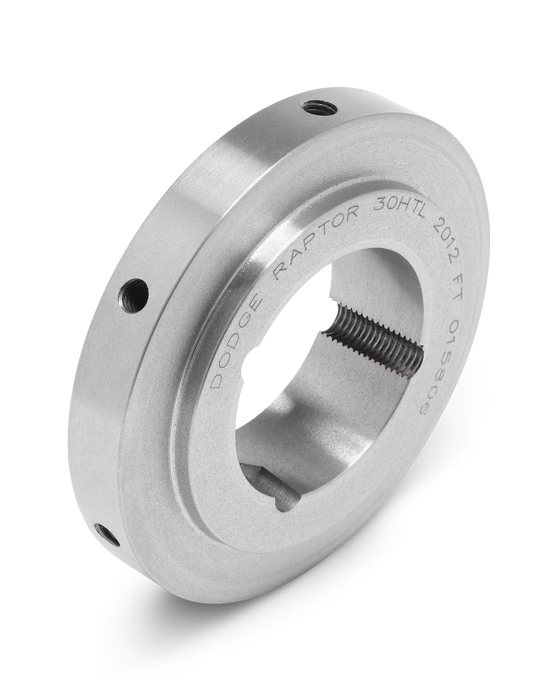

This Dodge Raptor size 10 Taper-Lock bushed shaft hub accepts a Dodge 1310 Taper-Lock bushing (sold separately) for fast installation and removal with minimal shaft damage. The flangeless bushing design keeps a narrow length-thru-bore for a clean, compact assembly, and the reversible hub fits both close-coupled and spacer Raptor couplings. Tapped for Imperial hardware; use with standard Raptor E10 element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 015804 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Taper-Lock Bushed |
| Coupling Size | E10 |
| Bushing Required | 1310 Taper-Lock (sold separately) |
| Max Bore | 1.44 in. (shallow key) |
| Hardware Type | Imperial (inch) |
| Material | Steel |
| Max Rated Torque | 1,456 in-lb |
| Max Speed | 6,600 RPM |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
