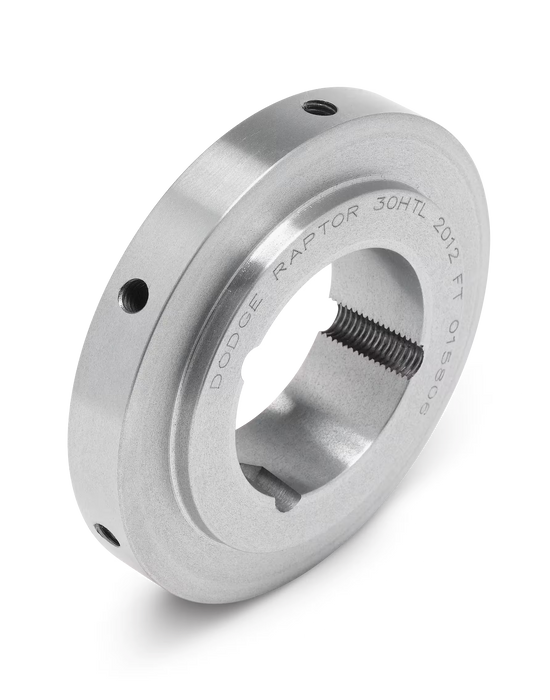

RAPTOR 10HTLM-1610
-
Product Attributes:
- Accepts 1610 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 10
- Steel
- Taper Bushed Bore
This Dodge Raptor size 10 Taper-Lock bushed shaft hub accepts a Dodge 1610 Taper-Lock bushing (sold separately) for fast installation and removal with minimal shaft damage. The flangeless bushing design keeps a narrow length-thru-bore for a clean, compact assembly, and the reversible hub fits both close-coupled and spacer Raptor couplings. This hub is tapped for metric hardware; use with Raptor metric (M) element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 015210 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Taper-Lock Bushed |
| Coupling Size | E10 |
| Bushing Required | 1610 Taper-Lock (sold separately) |
| Hardware Type | Metric (hub tapped for metric hardware) |
| Material | Steel |
| Max Rated Torque | 1,456 in-lb |
| Max Speed | 6,600 RPM |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
