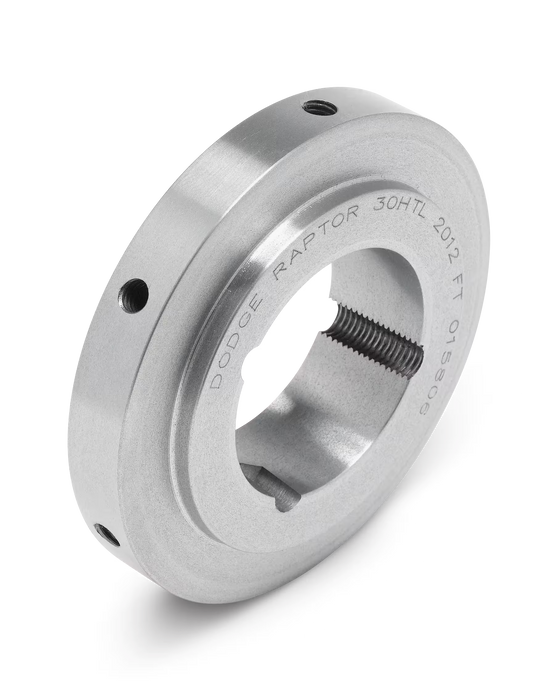

Product Image
Product photo may not represent actual item. Please see product details for more information.
RAPTOR 100HTL-4535 HUB
SKU 015201
Original price
$2,477.00
-
Original price
$2,477.00
Original price
$2,477.00
$2,477.00
-
$2,477.00
Current price
$2,477.00
-
Product Attributes:
- Accepts 4535 Bushing
- Coupling Half
- Couplings
- Elastomeric Couplings
- Size 100
- Steel
- Taper Bushed Bore
This Dodge Raptor size 100 Taper-Lock bushed shaft hub accepts a Dodge 4535 Taper-Lock bushing (sold separately) for fast installation and removal with minimal shaft damage. The flangeless bushing design keeps a narrow length-thru-bore for a clean, compact assembly, and the reversible hub fits both close-coupled and spacer Raptor couplings. Tapped for Imperial hardware; use with standard Raptor E100 element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 015201 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Taper-Lock Bushed |
| Coupling Size | E100 |
| Bushing Required | 4535 Taper-Lock (sold separately) |
| Max Bore | 4.94 in. (shallow key) |
| Hardware Type | Imperial (inch) |
| Material | Steel |
| Max Rated Torque | 85,085 in-lb |
| Max Speed | 1,900 RPM |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
