RAPTOR 140HCB 3-9/16" INT FIT
SKU 015151
Original price
$10,289.00
-
Original price
$10,289.00
Original price
$10,289.00
$10,289.00
-
$10,289.00
Current price
$10,289.00
-
Product Attributes:
- 3 9/16" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 140
- Steel

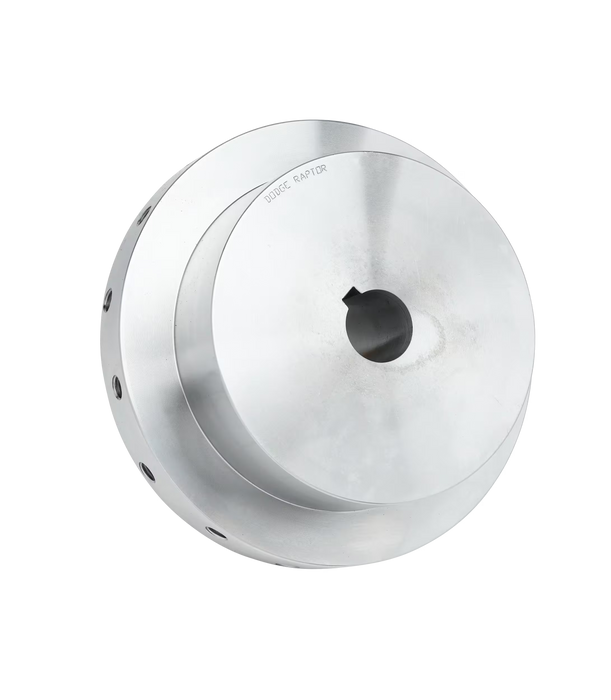

This Dodge Raptor size 140 finished bore shaft hub is bored to 3-9/16 in. with an interference fit per AGMA 9002. Two set screws at a 65° angle optimize radial and torsional holding power, delivering up to 75% more holding power than single set screw designs, and the reversible steel hub fits both close-coupled and spacer Raptor couplings. Tapped for Imperial hardware; use with standard Raptor E140 element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 015151 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Finished Bore |
| Coupling Size | E140 |
| Bore | 3-9/16 in. |
| Bore Fit | Interference fit (AGMA 9002) |
| Hardware Type | Imperial (inch) |
| Max Rated Torque | 340,340 in-lb |
| Max Speed | 1,500 RPM |
| Hub Length Thru Bore (B) | 7.00 in. |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
