RAPTOR 100HCB 2-7/8" INT FIT
SKU 015016
Original price
$3,758.00
-
Original price
$3,758.00
Original price
$3,758.00
$3,758.00
-
$3,758.00
Current price
$3,758.00
-
Product Attributes:
- 2 7/8" Bore
- Coupling Half
- Couplings
- Elastomeric Couplings
- Finished Bore
- Size 100
- Steel

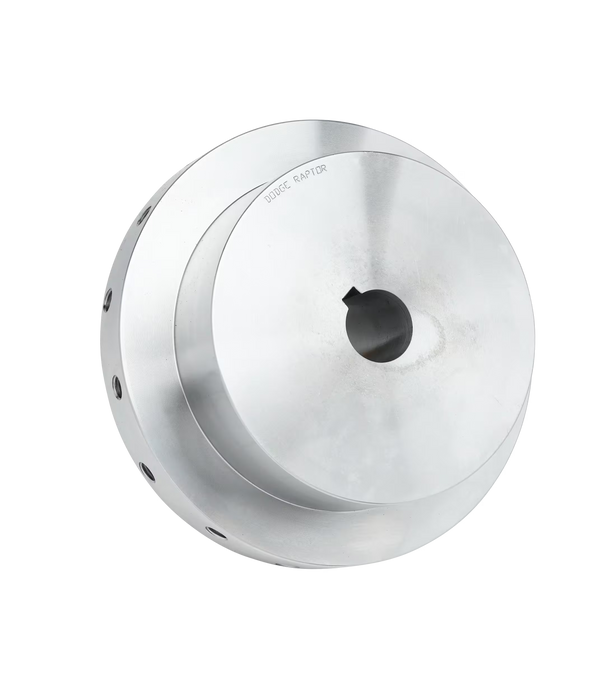

This Dodge Raptor size 100 finished bore shaft hub is bored to 2-7/8 in. with an interference fit per AGMA 9002. Two set screws at a 65° angle optimize radial and torsional holding power, delivering up to 75% more holding power than single set screw designs, and the reversible steel hub fits both close-coupled and spacer Raptor couplings. Tapped for Imperial hardware; use with standard Raptor E100 element assemblies. Raptor couplings are backed by Dodge's industry-leading 5-year limited warranty.
| Part Number | 015016 |
| Series | Dodge Raptor Elastomeric Coupling |
| Product Type | Shaft Hub, Finished Bore |
| Coupling Size | E100 |
| Bore | 2-7/8 in. |
| Bore Fit | Interference fit (AGMA 9002) |
| Hardware Type | Imperial (inch) |
| Max Rated Torque | 85,085 in-lb |
| Max Speed | 1,900 RPM |
| Hub Length Thru Bore (B) | 5.50 in. |
View the Dodge Raptor Coupling catalog section (PDF) for complete dimensions, selection data, and part numbers.
