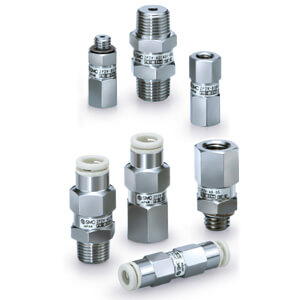

    ZP2V, Vacuum Saving Valve

    ZP2V is a vacuum saving valve that when multiple vacuum pads are operated by one vacuum generator, and some of them are not holding the work piece, the reduction of vacuum pressure is restricted and the work piece can remain held by the rest of pads. When the work pieces have different shapes, the control circuit can be simplified. There is no need for switching operation when changing work pieces.

    • Connection thread size for the pad: M5, M6, M8, R1/8, G1/8, NPT1/8
    • Fixed orifice size (mm): 0.3, 0.5, 0.7, 1.0
    • Maximum operating pressure range (MPa): 0 to 0.7
    • Ambient and fluid temperature (°C): 5 to 60 (No freezing)
    • Element nominal filtration rating (µm): 40
    Configuration Options
    Select Product Options
    Select values from the drop down lists or make appropriate selections to configure the part number.
    Pad Connection Thread Configuration Status
    Orifice Size Configuration Status
    Options in:
    • Gray are not compatible with other selected option value.
    • Red conflict with another selected option value.
    • Amber are not recommended.
