Features and benefits

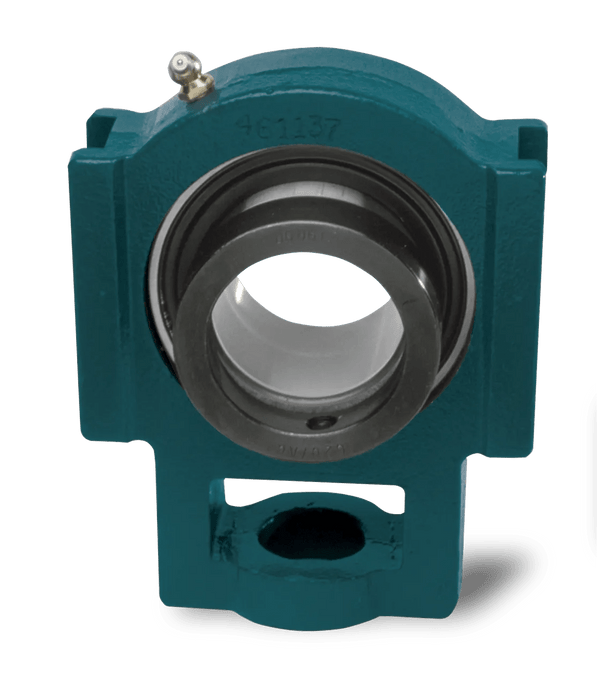

Eccentric Collar SXR ball bearings

For more than 70 years, Dodge has been talking to mounted bearing users and listening to their needs. This experience led to design of the optimum mounted ball bearings. The result is the Dodge SXR line, the most current eccentric collar mounted ball bearing design on the market, provides the user unmatched quality and true total value. The Dodge eccentric ball bearing is manufactured at the state-of-the-art Dodge bearing plant in Rogersville, Tennessee – an ISO 9001:2015 certified plant.
• Precision-hardened inner ring
• Normal duty wide inner ring (SXR)
• Eccentric collar locking system
• Dodge DualGuard land-riding, positive contact seal
• Stronger, flexible ball cage
• Simplified anti-rotation device
• Wide variety of housing configurations
• Available in 1/2” to 2-15/16” (17 to 75 mm) bore sizes
• SXR Seal options:
- low torque labyrinth
- FDA/USDA lubricant and other special lubricants

Snap-in end covers
• Machined groove in housing accepts cover
• Secure fit to prevent spinning
• Keeps contaminants away from seal
• Creates safer work environment
• OSHA approved yellow
• Closed and open covers available
• Standard feature on PB, F2B, & F4B housing styles, 204-212 Series
• Press-In style for 214-218 Series
• Nomenclature
- ECC-205-Y, Closed 205 series
- ECO-100Y, Open 1" bore size

DualGuard seal
• Mechanically retained single lip seal for added strength
- Purgeable design
- Nitrile rubber lip
- Keeps out contaminants
• Rubberized flinger
- Dodge-only technology
- Rubberized flinger provides external protection and discards contaminants as it rotates
- Molded baffles in flinger act like a paddle wheel to help deflect liquids
- Molded rubber increases the radius of the flinger which increases the acceleration rate of the contaminants as they are thrown away from the bearing
- Rubber molding on the flinger is extended to the outer race of the bearing providing better protection than non-rubberized versions

Stronger flexible cage

The ball cage is made of heat-stabilized nylon with 33% fill short fiberglass reinforcement for added strength. The nylon material provides a natural lubricity for longer life. Fiberglass reinforcement allows higher operating temperatures than plain nylon, yet it is more resistant to fatigue than metallic cages. Short fiberglass allows greater flexibility than steel or normal fiberglass, especially under misalignment. That means longer life in mounted bearings where some degree of misalignment is unavoidably encountered.

Anti-rotation pin
An anti-rotation pin prevents rotation of the outer race within the housing. Simple and effective, it makes system inserts easier to replace. There is no need to remove and replace grease fittings, location pins or other devices.
